Chapter 1: Setting Up

5

Connecting the

Power

Connect the AC power cord to a wall outlet

after you have made all the above

connections.

To improve the AM reception

After you connect the AM antenna, connect

a 6- to 15-meter (20- to 50-feet) insulated

wire to the AM terminal. Connect the y

terminal to earth.

Important

Ground the external antenna against

lightning from the y terminal. To prevent a

gas explosion, do not connect the ground

wire to a gas pipe.

STEP 3

Demo mode

The demo mode appears in the display

when you connect the AC power cord to

a wall outlet.

To deactivate the demo mode, press

DISPLAY/DEMO with the system

power turned off.

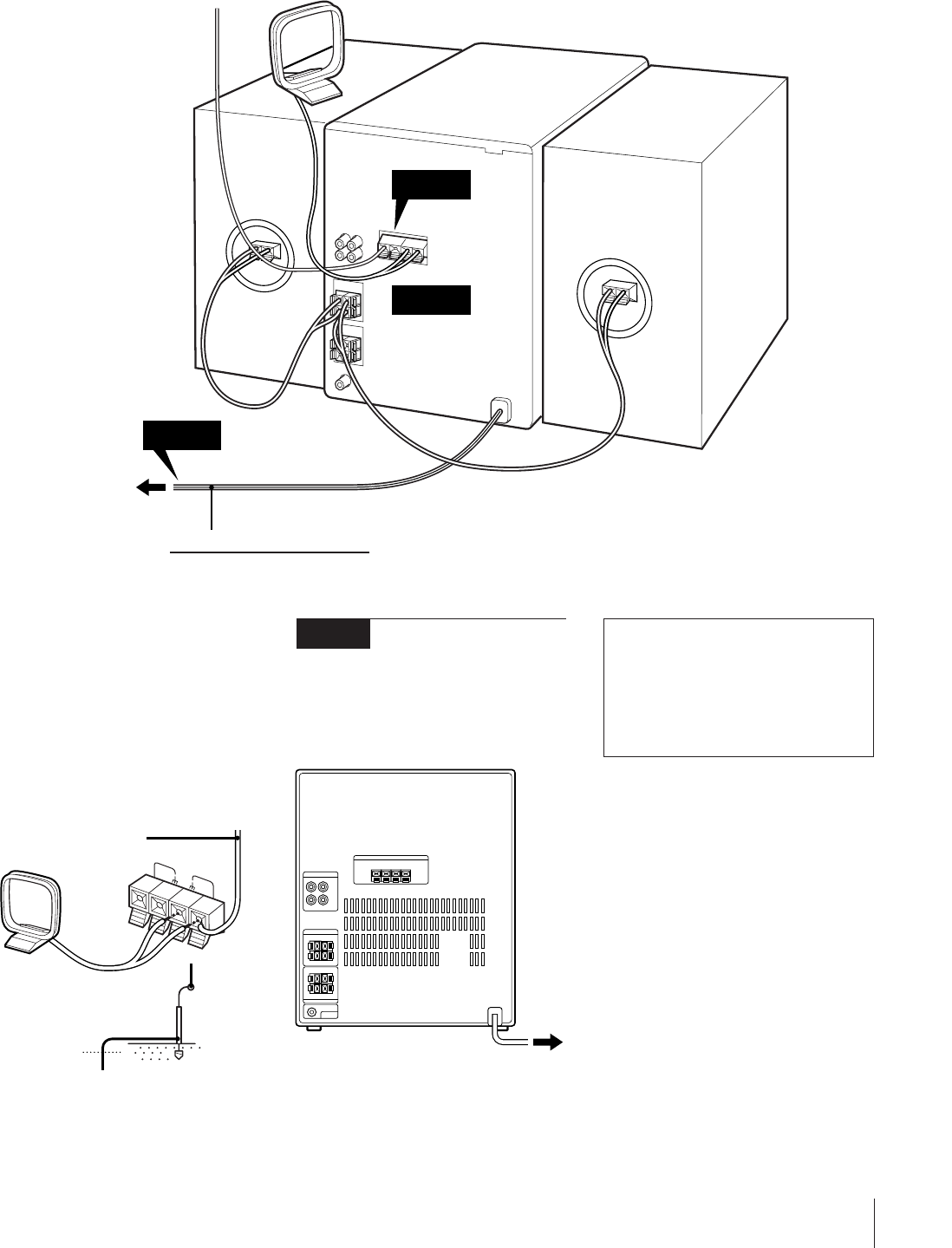

FM 75Ω

AM

y

Ground wire

(not supplied)

Screw clamp

Insulated wire

(not supplied)

to a wall outlet

STEP 1

STEP 2

STEP 3

Left speaker

Right speaker

!Do this connection last!

to a wall outlet

AM loop antenna

(supplied)

FM lead antenna

(supplied)
